直通高压球阀
上海意威阀门专业生产直通高压球阀,铸钢直通高压球阀,不锈钢直通高压球阀,直通高压球阀价格,直通高压球阀厂家
Qz41F整体直通式球阀简介
在焦炉氨水系统中，整体直通式球阀与组合式三通阀配套使用，在系统停车，管路设备检修时，将整体直通式球阀关闭以截断氨水介质，而系统正常运行时，整体直通式球阀始终处于全开启状态。型号说明
① 系列代号：VH2V系列
② 连接代号：M** 、G** 、 **LR 、**SR、PT**、NPT**
③ 阀体材料：1-钢、2-不锈钢
④ 球体材料：1-钢、2-黄铜、3-不锈钢
⑤ 工作温度：1、-25～＋100℃ 2、-30～＋170℃
⑥ 其他密封：2-丁晴橡胶、4-氟橡胶
⑦ 手柄形式：01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
⑧ 设计序号：由生产商定
⑨ 表面处理：空白-磷化、G-电镀黄锌

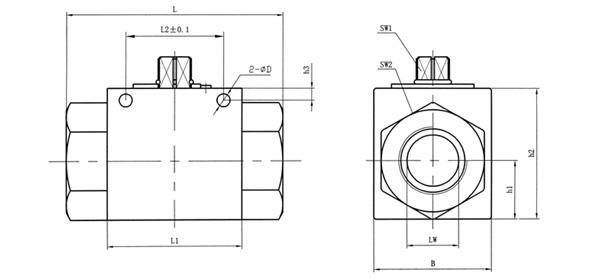

外形尺寸
尺寸表
连接口略图:
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L
|
L1 |
B |
L2 |
h1 |
h2 |
SW1 |
SW2 |
D |
h3 |
|
VH2V-M16×1.5 |
500 |
06 |
06 |
11 |
M16×1.5 |
11 |
69 |
40 |
26 |
31.5 |
13.5 |
35 |
09 |
22 |
4.5 |
4.8 |
|
VH2V-M27×1.5 |
500 |
10 |
10 |
20 |
M27×1.5 |
12 |
76 |
42 |
32 |
31.5 |
16 |
40 |
09 |
27 |
5.3 |
5.8 |
|
VH2V-M36×2 |
400 |
20 |
20 |
30 |
M36×2 |
15 |
103 |
60 |
48 |
48.5 |
25 |
58 |
12 |
41 |
6.5 |
6 |
|
VH2V-M42×2 |
350 |
25 |
23 |
35 |
M42×2 |
18 |
116 |
65 |
57 |
50.5 |
28.5 |
65 |
12 |
50 |
8.5 |
7 |
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L
|
L1 |
B |
L2 |
h1 |
h2 |
SW1 |
SW2 |
D |
h3 |
|
VH2V-G1/4 |
500 |
06 |
06 |
／ |
G1/4 |
14 |
69 |
40 |
26 |
31.5 |
13.5 |
35 |
09 |
22 |
4.5 |
4.8 |
|
VH2V-G3/8 |
500 |
10 |
10 |
／ |
G3/8 |
14 |
72 |
42 |
32 |
31.5 |
16 |
40 |
09 |
27 |
5.3 |
5.8 |
|
VH2V-G1/2 |
500 |
13 |
12 |
／ |
G1/2 |
16 |
83 |
48 |
35 |
38.5 |
18 |
45 |
09 |
30 |
6.5 |
6 |
|
VH2V-G3/4 |
400 |
20 |
20 |
／ |
G3/4 |
18 |
93 |
60 |
50 |
48.5 |
23 |
58 |
12 |
41 |
6.5 |
6 |
|
VH2V-G1 |
350 |
25 |
25 |
／ |
G1 |
21 |
115 |
65 |
57 |
50.5 |
27.5 |
65 |
12 |
46 |
8.5 |
7 |
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L
|
L1 |
B |
L2 |
h1 |
h2 |
SW1 |
SW2 |
D |
h3 |
|
VH2V-NPT1/4 |
500 |
06 |
06 |
／ |
NPT1/4 |
14 |
69 |
40 |
26 |
31.5 |
13.5 |
35 |
09 |
22 |
4.5 |
4.8 |
|
VH2V-NPT3/8 |
500 |
10 |
10 |
／ |
NPT3/8 |
14 |
72 |
42 |
32 |
31.5 |
16 |
40 |
09 |
27 |
5.3 |
5.8 |
|
VH2V-NPT1/2 |
500 |
13 |
12 |
／ |
NPT1/2 |
16 |
83 |
48 |
35 |
38.5 |
18 |
45 |
09 |
30 |
6.5 |
6 |
|
VH2V-NPT3/4 |
400 |
20 |
20 |
／ |
NPT3/4 |
18 |
95 |
60 |
50 |
48.5 |
23 |
58 |
12 |
41 |
6.5 |
6 |
|
VH2V-NPT1 |
350 |
25 |
23 |
／ |
NPT1 |
21 |
113 |
65 |
57 |
50.5 |
27.5 |
65 |
12 |
46 |
8.5 |
7 |
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L
|
L1 |
B |
L2 |
h1 |
h2 |
SW1 |
SW2 |
D |
h3 |
|
VH2V-08LR |
500 |
06 |
06 |
08 |
M14×1.5 |
10 |
67 |
40 |
26 |
31.5 |
13.5 |
35 |
09 |
22 |
4.5 |
4.8 |
|
VH2V-12LR |
500 |
10 |
10 |
12 |
M18×1.5 |
11 |
74 |
42 |
32 |
31.5 |
16 |
40 |
09 |
27 |
5.3 |
5.8 |
|
VH2V-15LR |
500 |
13 |
12 |
15 |
M22×1.5 |
12 |
82 |
48 |
35 |
38.5 |
18 |
45 |
09 |
30 |
6.5 |
6 |
|
VH2V-18LR |
500 |
13 |
12 |
18 |
M26×1.5 |
12 |
82 |
48 |
35 |
38.5 |
18 |
45 |
09 |
30 |
6.5 |
6 |
|
VH2V-22LR |
400 |
20 |
19 |
22 |
M30×2 |
14 |
101 |
60 |
50 |
48.5 |
23 |
58 |
12 |
41 |
6.5 |
6 |
|
VH2V-28LR |
350 |
25 |
24 |
28 |
M36×2 |
14 |
108 |
65 |
57 |
50.5 |
27.5 |
65 |
12 |
46 |
8.5 |
7 |
|
简略型号 |
PN(bar) |
DN |
LW |
RA |
d1 |
i |
L
|
L1 |
B |
L2 |
h1 |
h2 |
SW1 |
SW2 |
D |
h3 |
|
VH2V-10SR |
500 |
06 |
06 |
10 |
M18×1.5 |
12 |
73 |
40 |
26 |
31.5 |
13.5 |
35 |
09 |
22 |
4.5 |
4.8 |
|
VH2V-14SR |
500 |
10 |
10 |
14 |
M22×1.5 |
14 |
80 |
42 |
32 |
31.5 |
16 |
40 |
09 |
27 |
5.3 |
5.8 |
|
VH2V-16SR |
500 |
13 |
12 |
16 |
M24×1.5 |
14 |
86 |
48 |
35 |
38.5 |
18 |
45 |
09 |
30 |
6.5 |
6 |
|
VH2V-20SR |
500 |
13 |
12 |
20 |
M30×2 |
16 |
90 |
48 |
35 |
38.5 |
18 |
45 |
09 |
30 |
6.5 |
6 |
|
VH2V-25R |
400 |
20 |
20 |
25 |
M36×2 |
18 |
109 |
60 |
50 |
48.5 |
23 |
58 |
12 |
41 |
6.5 |
6 |
|
VH2V-30SR |
350 |
25 |
25 |
30 |
M42×2 |
20 |
120 |
65 |
57 |
50.5 |
27.5 |
65 |
12 |
46 |
8.5 |
7 | |
